Chevy 454 STAGE 2 MASTER Engine Kit 1970-79 Street/Strip (1533 500+E1064P+H426CP))

Here is our Stage 2 STREET PERFORMER

Master Engine Rebuild Kit for 1970-1979

(w/ two piece rear main seal) GEN 4 Chevy 454 Engines

• (1) Fel-Pro 260-1009 Complete Engine Overhaul Gasket Set

• (8) Speed Pro H426CP Hypereutectic .100 Dome Pistons


• (1) Melling M77HV High Volume Oil Pump

• (1) Clevite/Mahle MS829A Main Bearing Set

• (1) Clevite/Mahle CB743A Rod Bearings Set

• (16) Elgin HL1817S Hydraulic Flat Tappet Lifters

• (1) Elgin E1064P Stage 2 street/strip performance camshaft


• (1) Clevite/Mahle SH616S Cam Bearing Set

• (1) Cloyes C3024K HD Double HD Timing Chain Set

• (1) Elgin EP102R Freeze Plug Set

• (1) Hastings 2M683 Moly Piston Ring Set

The following sizes are available at no additional cost

• Pistons and Piston Rings: STD, .020, .030, .040, .060

• Rod Bearings: STD, .001, .010, .020, .030

• Main Bearings: STD, .001, .010, .020, .030

• These are very high quality pistons by Speed Pro. They are a hypereutectic flat top piston with 2 valve reliefs and anti-friction coated skirts. For use with stock 6.135" press fit or floater connecting rods

• Duration @ .050": Intake: 224 Exhaust: 224

• Advertised Duration: Intake: 294 Exhaust: 294

• Valve Lift: Intake: .510 Exhaust: .510

• Lobe Separation: 116

• Power Range:     1500-5500rpm

• Idle: Fair

• Lifter Part #: HL1817S

• Comment:  STREET/STRIP RACE

General Stage 2 Camshaft Specifications:

• Idle Quality:  Fair/mildly noticeable

• Torque:     Strongest through Lower Mid- range

• Fuel Economy:      Not good

Recommendations:

• Towing: NOT Recommended

• Racing: Street perf. Not a track cam

• Computer Controlled Vehicles: Not Recommended

• Transmission: Automatic or Manual, 2000 stall, likes headers

• Compression Ratio: 8.5:1-up
•

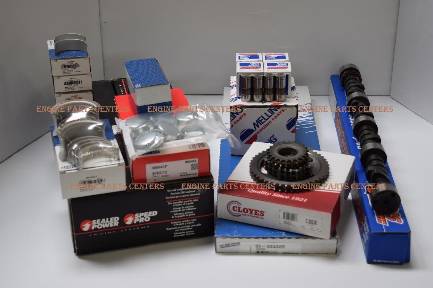

Pictures are generic but represent the item you will receive.

High Volume pump comes with this kit. If you prefer a stock M77 pump, let us know.

*Pistons include piston pins
