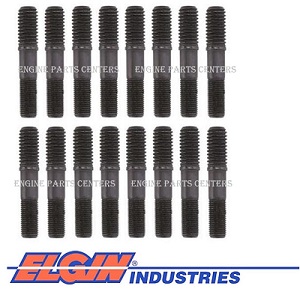

This listings is for a set of (16) 3/8"-24 Top End and 7/16"-14 bottom
end screw in the studs. Straight shaft, NO hex nut.Theses are designed
to replace the stock style press-in studs on small block Chevy V8
engines without having to machine the stud boss down on the head. Just
pull the old studs and tap the holes to 7/16"-14 coarse threads. 2.325"
Overall stud length 1.600" Stud height .725" Screw-in thread depth .875"
Adjuster thread depth, 3/8"-24 Fine thread tops and 7/16"-14 Coarse
thread bottoms.
