If you are looking for a high performance Piston and Ring combination, withing breaking your performance budget, EnginePartsCenters has a deal for you.

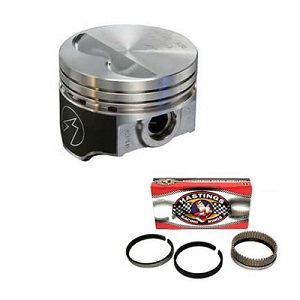

This listing is for the H116CP Hypereutectic piston, and Hasting Racing Ring.
The Hasting Performance ring is a Premium Ductile Series set offers a balance between
performance and cost—making
it our
best-selling ring set.
Top rings are
made of high-tensile premium ductile iron,
coated
with either
plasma moly impact-resistant alloy or abrasive-resistant, highly
adhesive chrome.
Premium Ductile,
made with highly malleable Ductile iron, has the durability to
withstand high
temperatures and
pressures, including abnormal combustion events
(i
.g. , detonation
and pre-
ignition)
The top ring is
Torsional Positive-Twist, packaged with our reverse twist,
taper-faced
cast iron or
ductile napier 2nd groove
And the Sealed Power Speed Pro Street Series Pistons are manufactured from FM244 aluminum alloy for greater strength and wera resistance.
This combination is perfect for high performance street, bracket racing, and oval track racing.
Federal Mogul/Speed Pro Piston Part
Number
|
Application |
Power Range |
Special requirements |
Compression information
|
Ring groove size
Pin diameter
|
Rod length
Stroke
|
Deck clearance
Skirt clearance
|
|
H116CP - We also have other piston sizes available.
|
Chrysler 360 V-8 - 4.000" bore (at STANDARD)
Flat head w/2-valve reliefs. DurOshield coated skirt. CNC machined.
Not Factory, OE duplicate pistons. Use as a performance upgrade only.
|
idle to 6500+rpm |
Good for street/strip or light race |
Compression distance: 1.660"
Piston head volume: -5.0cc
Approx. Compression (@.030"):
w/63cc chambers 10.06:1
w/65cc 9.85:1
w/68.4cc 9.50:1
|
5/64" 5/64" 3/16" ring grooves
Pin diameter: .984" (included)
|
Stock length rods
Press-fit or floating
Stock 3.578" stroke
|
.027" deck clr
.0015" skirt clr
|
