Equipped 'Plug n Play' Billet Distributors
Ignitor
II equipped plug 'n play billet distributors are designed for maximum
ignition performance and easy installation all at a price that you
can afford. The Flame-Thrower Billet distributors replace outdated
points, electronic distributor, and bulky HEIs with a performance
proven system. Simply install the distributor in the engine, connect
two electrical wires, and start it up! For even more performance,
consider adding a Flame-Thrower II coil for increased spark energy and
higher RPM potential. Each distributor is precision machined for an
exact fit. Distributor features include:
- Precision CNC-machined 6061-T6 billet aluminum housing is lightweight yet offers maximum strength
- Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration
- High dielectric strength cap with brass terminals and premium rotor with brass contact
- Synchronized peak current and spark timing reduces heat build-up
- Ignitor II systems develop up to 4x times more energy between 3000 and 5000 RPM than standard ignition systems
- High
RPM performance is improved when used with the Flame-Thrower II
super low resistance (0.6 ohms) 45,000 volt coil (available
separately)
- Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
- Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage
- Peak
current level is reached just prior to spark for maximum energy
without the heat build-up, increasing coil and module life
- Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay
- Senses
startup and develops more energy for quicker, easier starting.
Built in reverse polarity and over current protection shuts down the
system, preventing component damage
- Ideal for tight engine compartments; width (not including vac adv) 5.00", height from installed surface to cap top 7.66"
- Warranty: 30 months electronics / limited 1 year mechanical
- Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-23)
*** TECH NOTE: Ignitor II applications cannot be used with solid core ignition wires.***

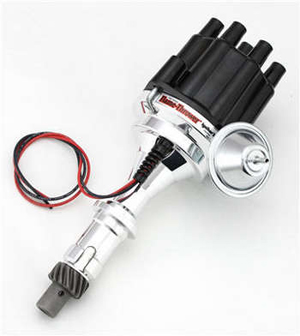

This
listing is for a PerTronix Flame-Thrower Ignitor II "plug n play"
billet distributor with vacuum advance for Pontiac 301ci, 326ci, 350ci,
389ci, 400ci, 421ci, 428ci, and 455ci V-8 engines. P/N D120700. This
distributor comes with a socket-style (female) black cap. All
Flame-Thrower distributors are for use with 12-volt, negative ground
electrical systems; unless noted otherwise.
